CHS / Mecon Complete Coil Feed Line Specifications:
Coil weight capacity: 20,000 Lb
Coil width capacity: 48"
Stock thickness capacity: .080" x 48" Wide
Expansion range: 17" - 20" (To be confirmed)
Coil O.D. capacity: 72"

CHS / Mecon Complete Coil Feed Line Equipment and Features:

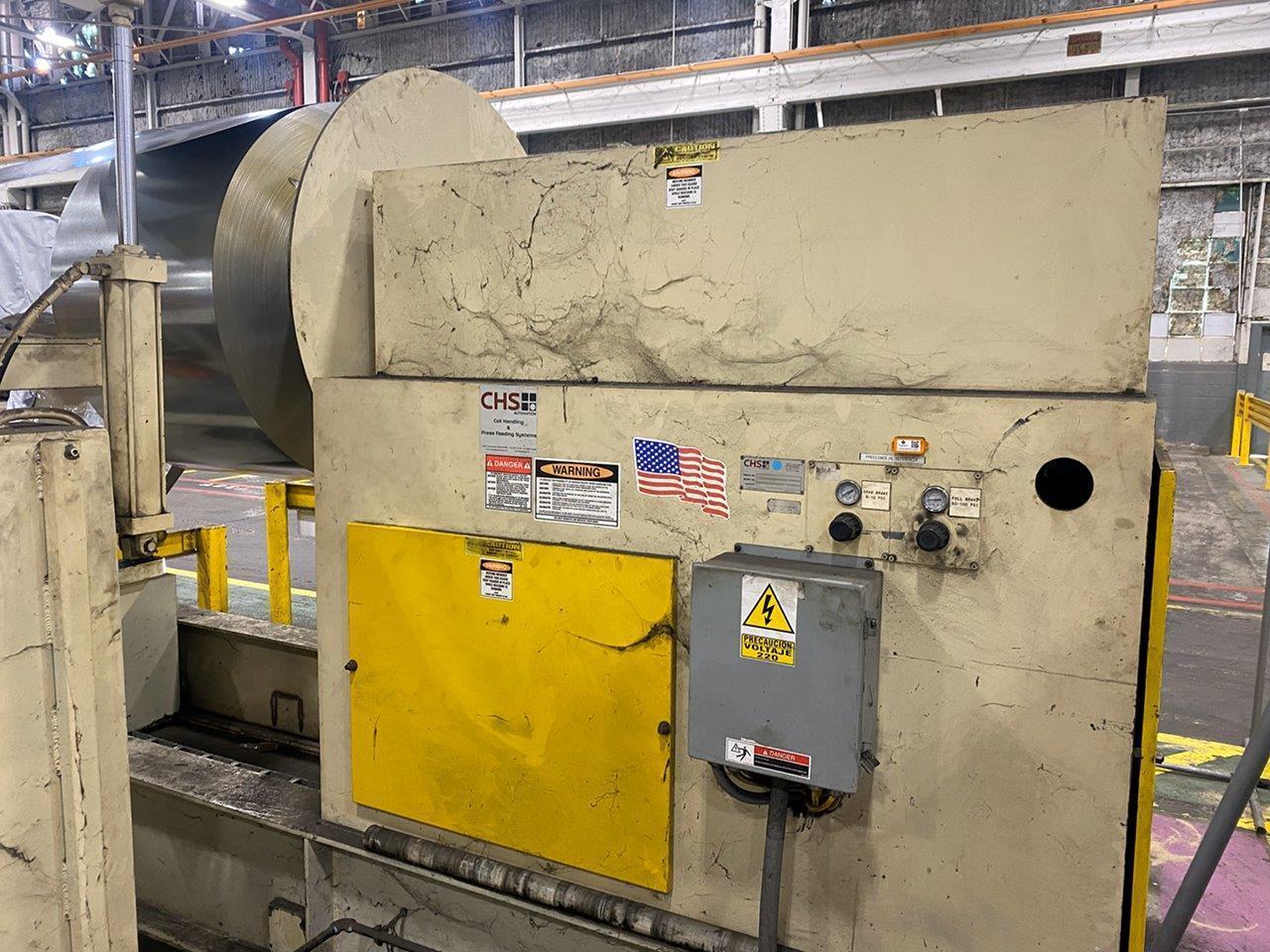

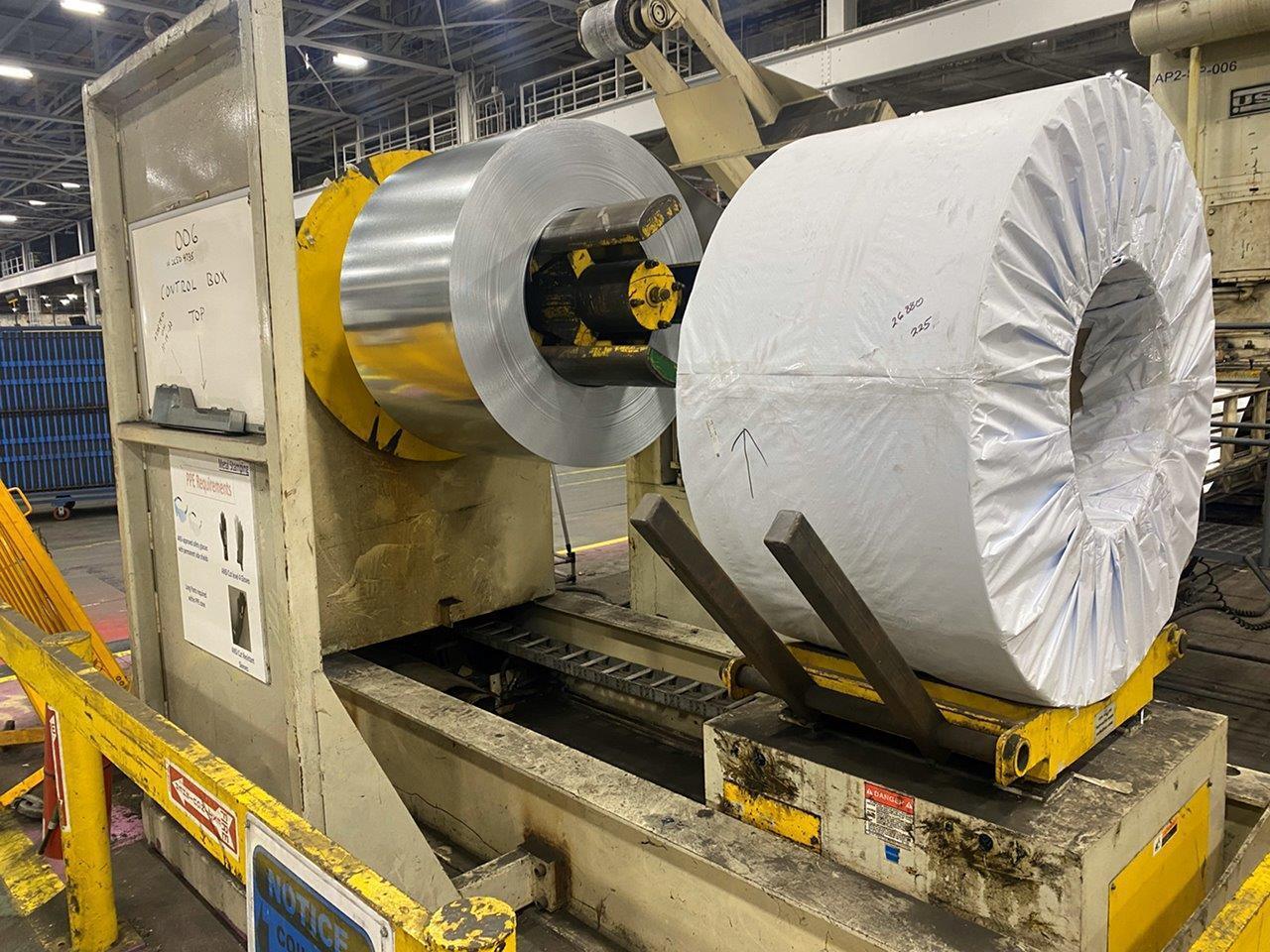

CHS Coil Reel Model No.: DR-200-48, Serial No.: 065480
Three leaf mandrel with hydraulic expansion
Air drag brake with adjustable tensioning
Threading drive for jog forward and reverse
Coil load car
Powered lift and travel

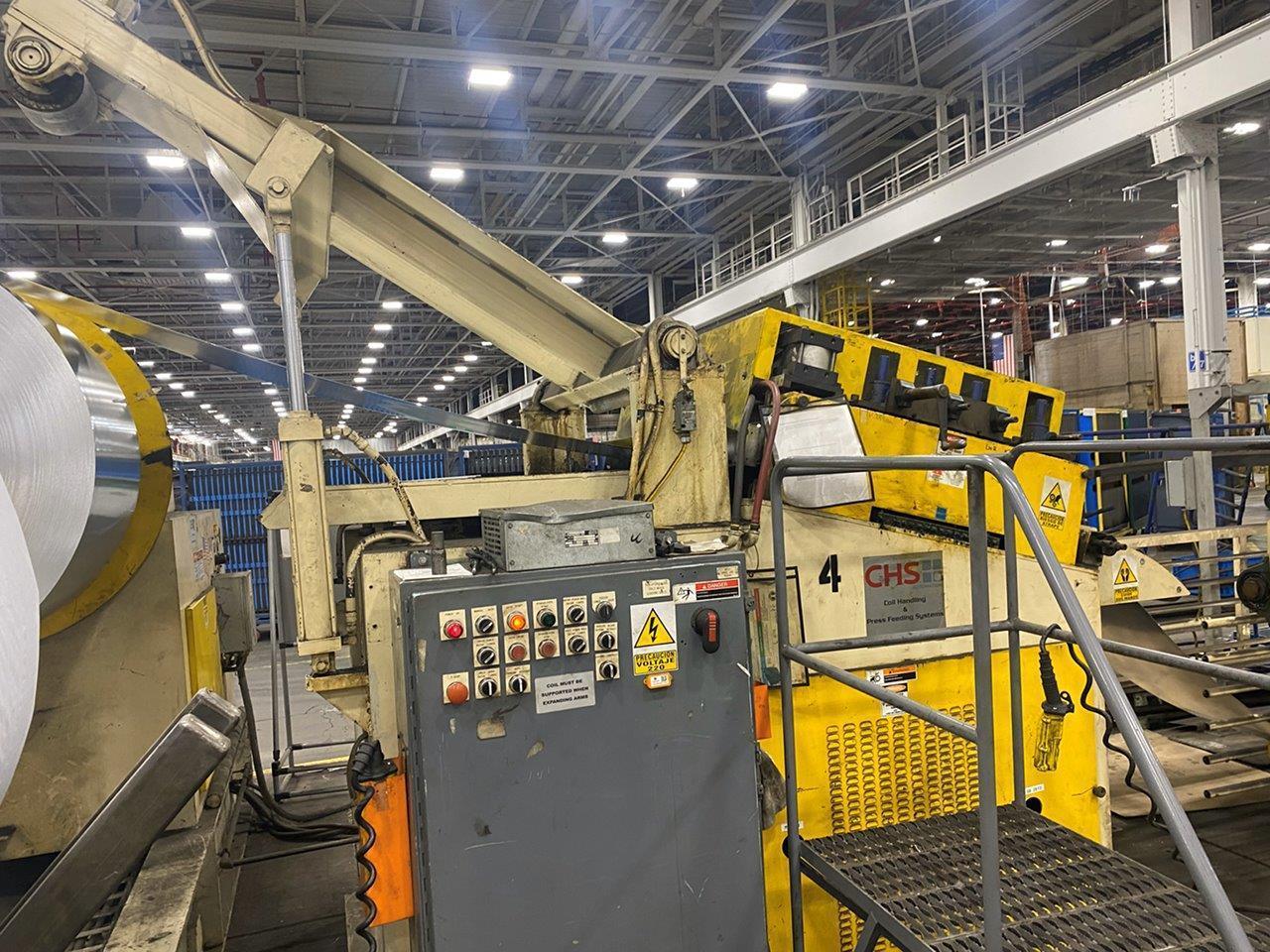

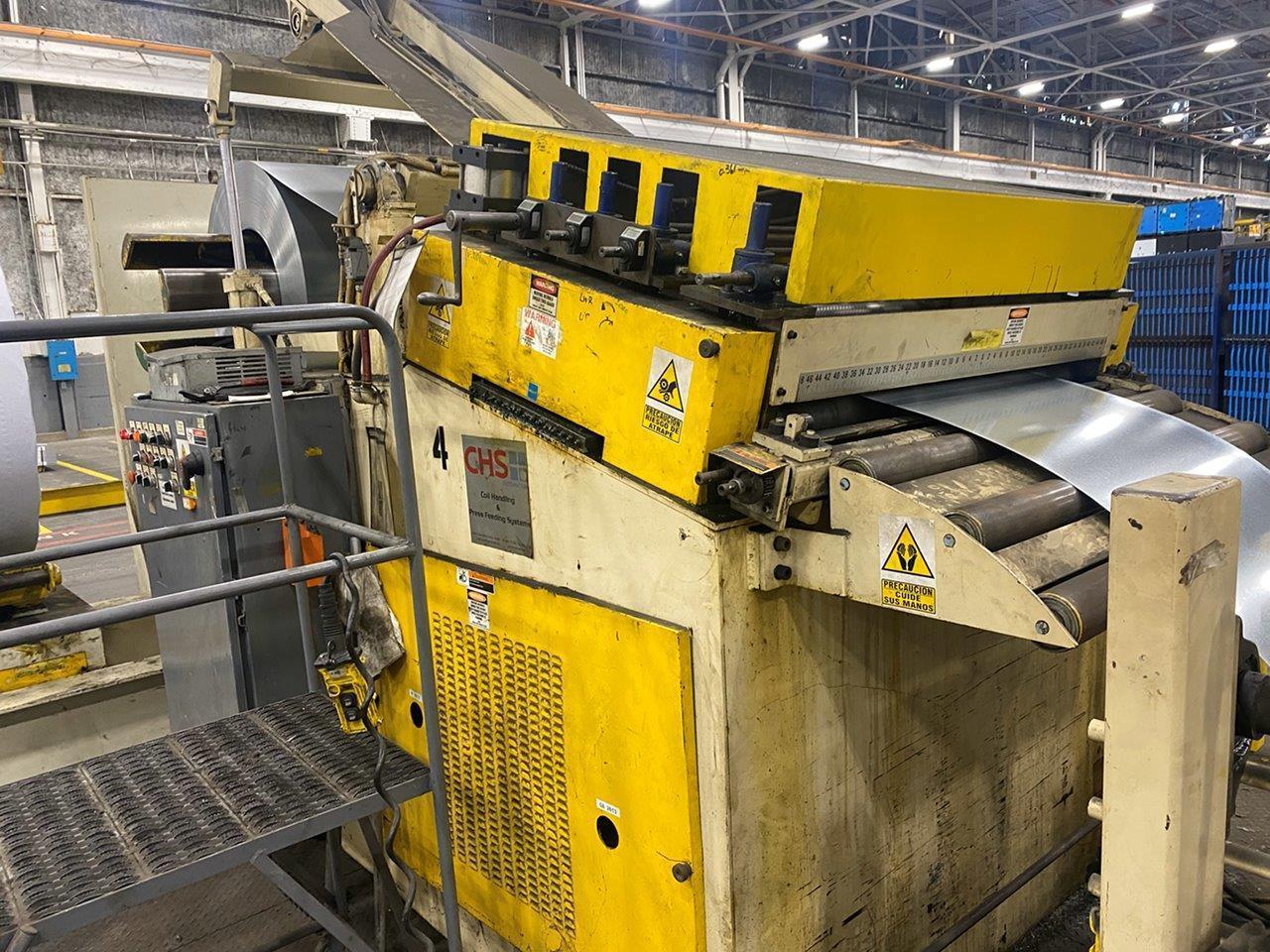

CHS Powered Straightener Model No.: PS-350-7-48, Serial No.: 065475
Entry and exit pinch rolls
Air operated upper pinch roll adjustments
Seven straightening rolls x 3.5" diameter
Manual upper straightening roll adjustments via screw jacks
Coil hold down arm with motorized end wheel
Stock peeler table with spade extension
Exit cascade loop support rollers
Jog forward and reverse
Operator's control station
Auto / Run cycle
Laser loop control with remote stand

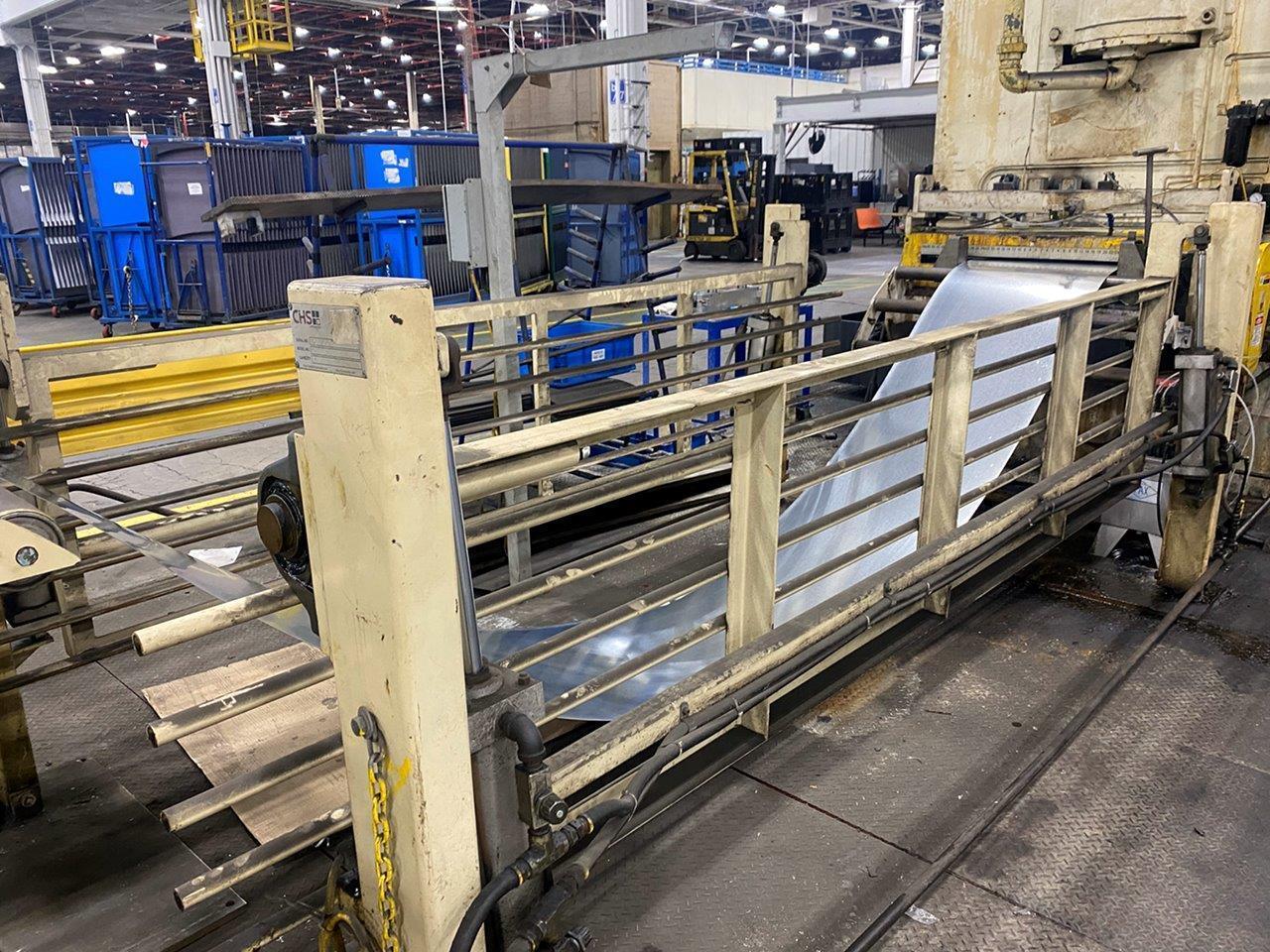

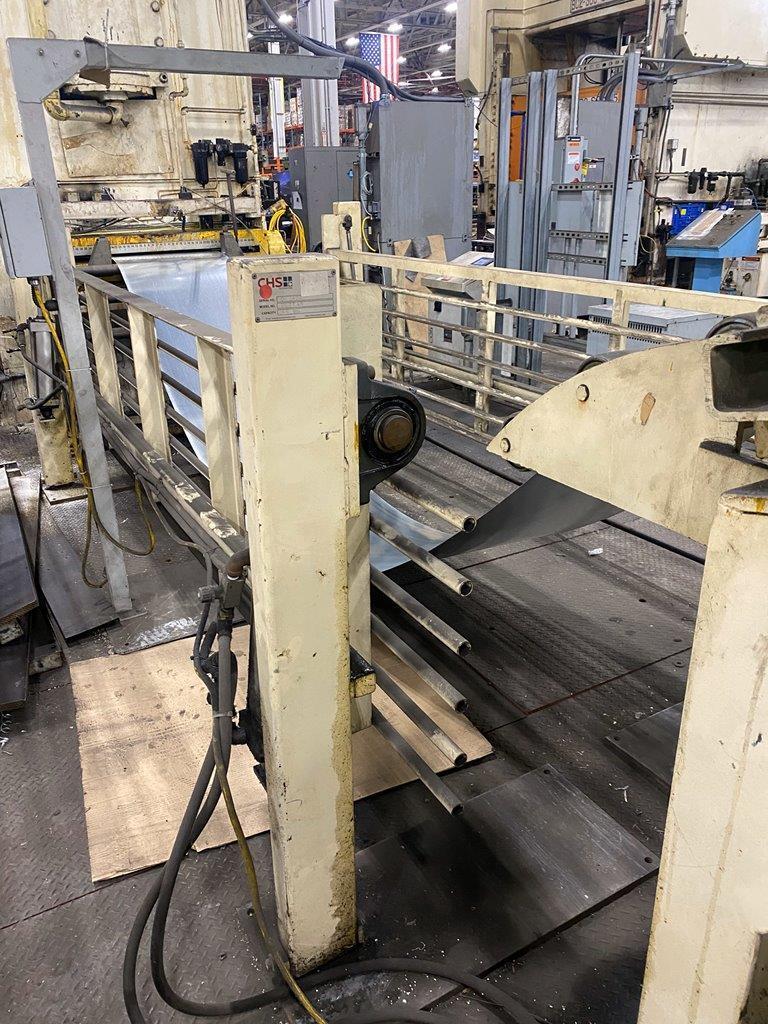

CHS Exit Thread Table Model No.: DETT-48, Serial No.: 065476
Bomb bay door design

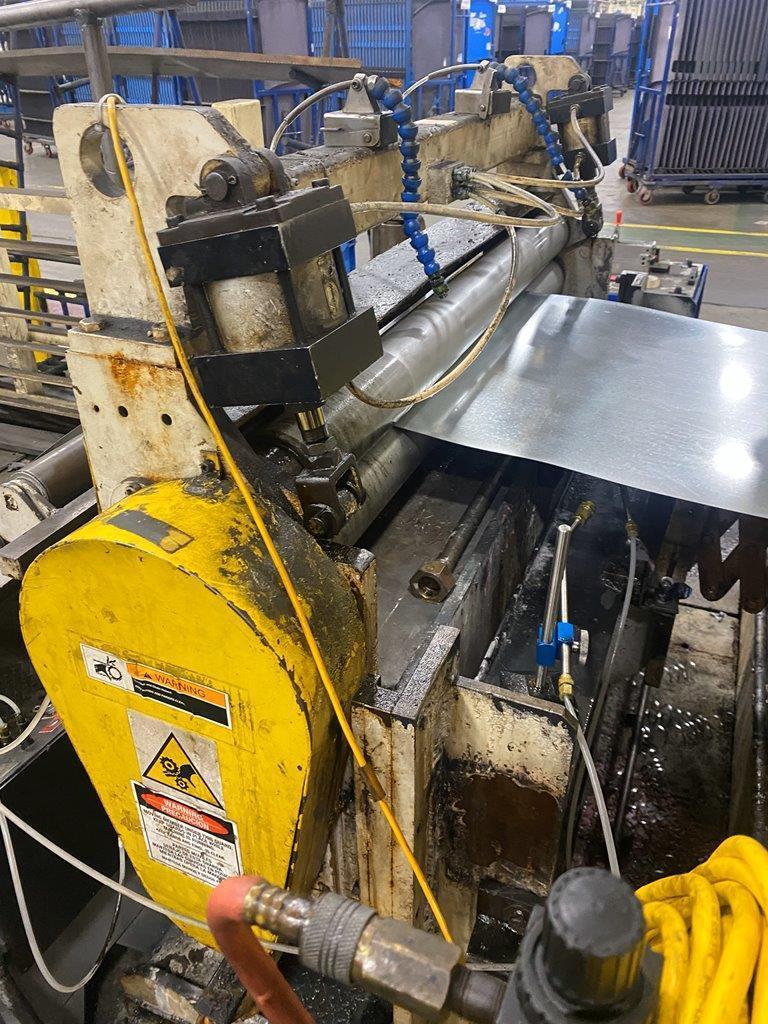

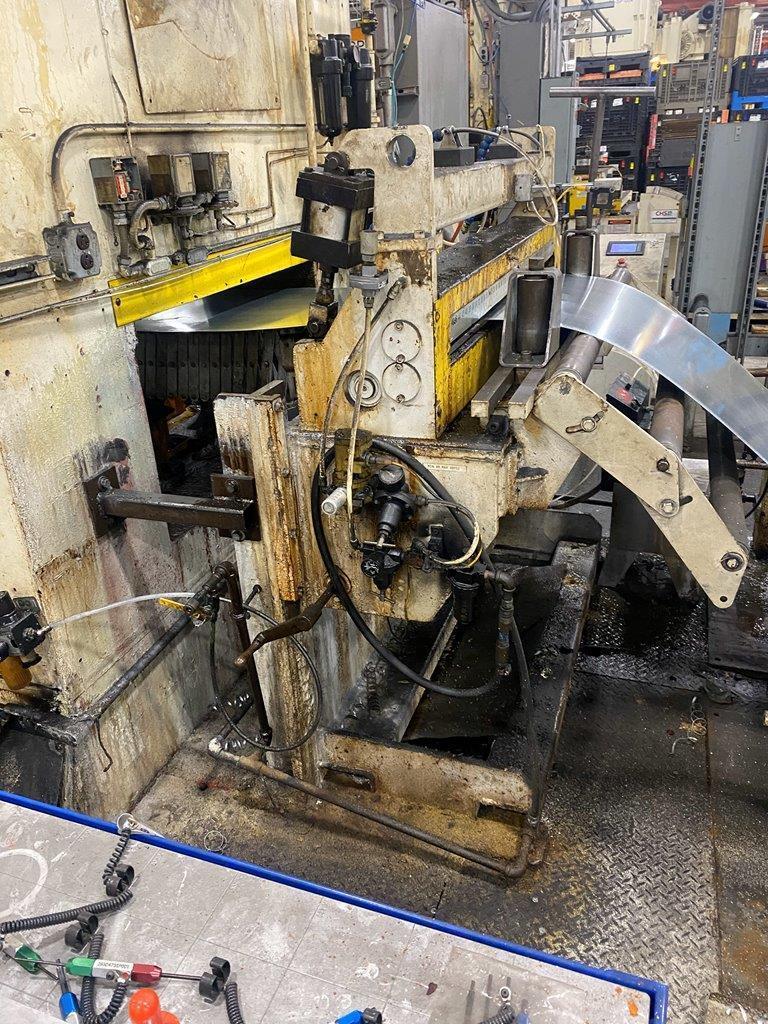

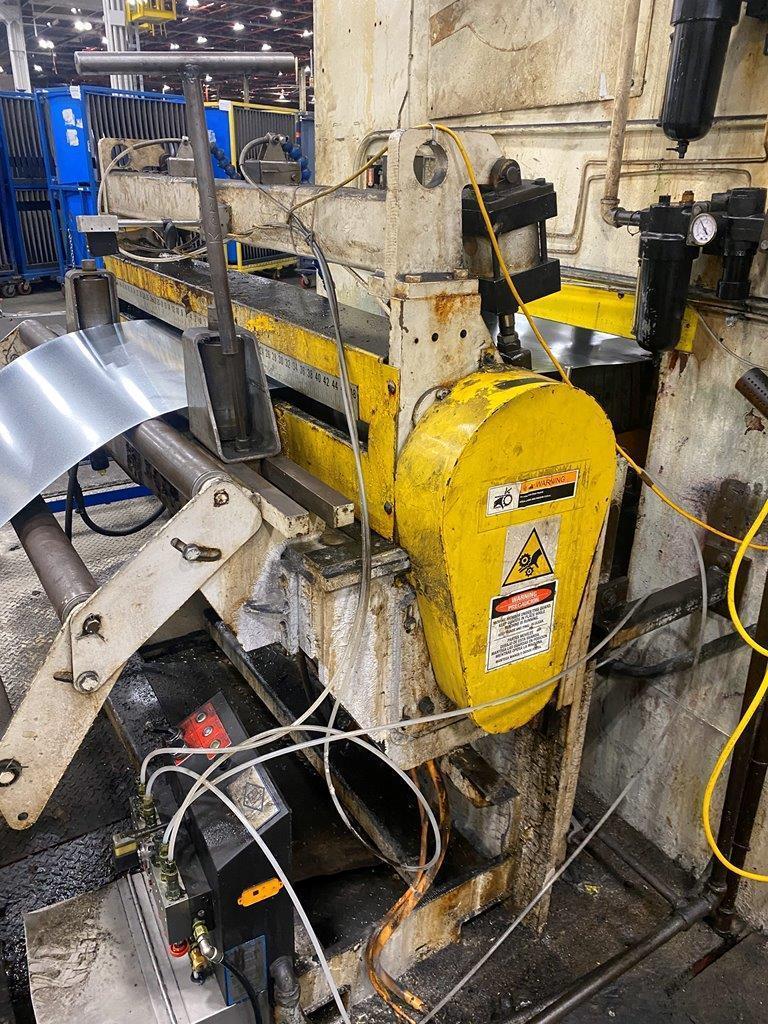

Mecon Servo Roll Feed Model No.: 400-F HD
Four inch diameter full width upper and lower feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo roll lift / pilot (solenoid controlled)
Jog forward and reverse
Stock width edge guides
Cascade loop support rollers
Centralized lubrication points
Press mount stand
Pass line adjustment
AC servo roll feed drive and controls
