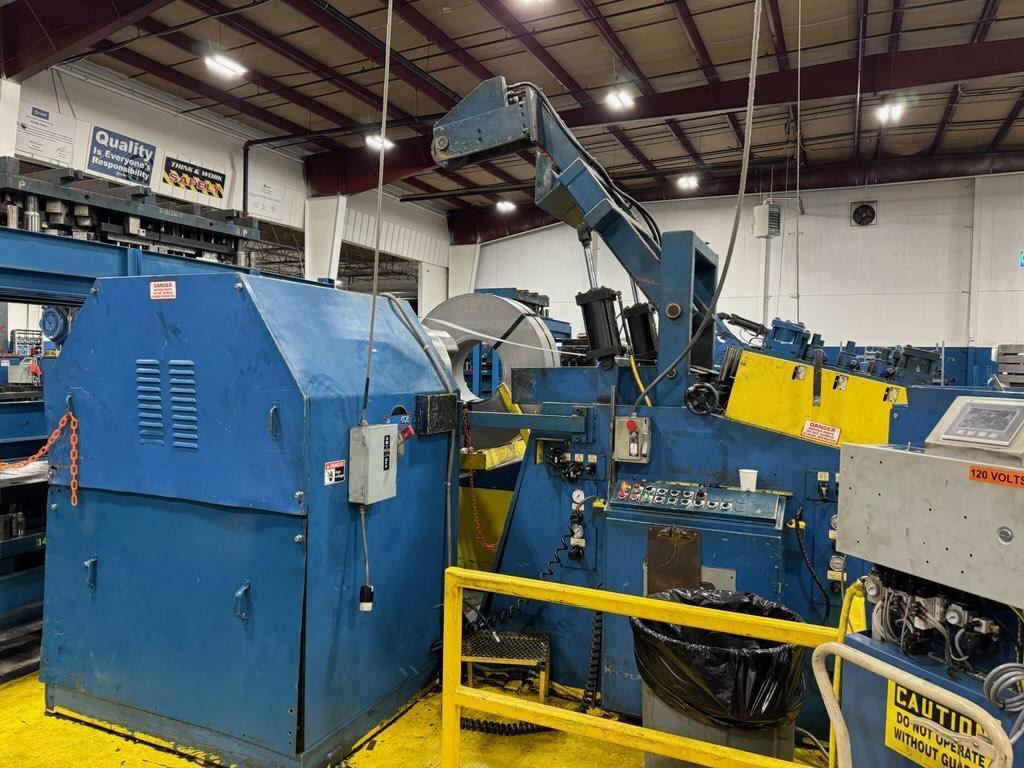

Coe Press Complete Coil Feed Line Specifications:
Coil weight capacity: 15,000 Lbs.
Coil width capacity: 24"
Stock thickness capacity: .125" @ 24" Wide
Expansion range: 19" - 24" (To be confirmed)
Coil OD capacity: 60"

Coe Press Complete Coil Feed Line Equipment and Features:

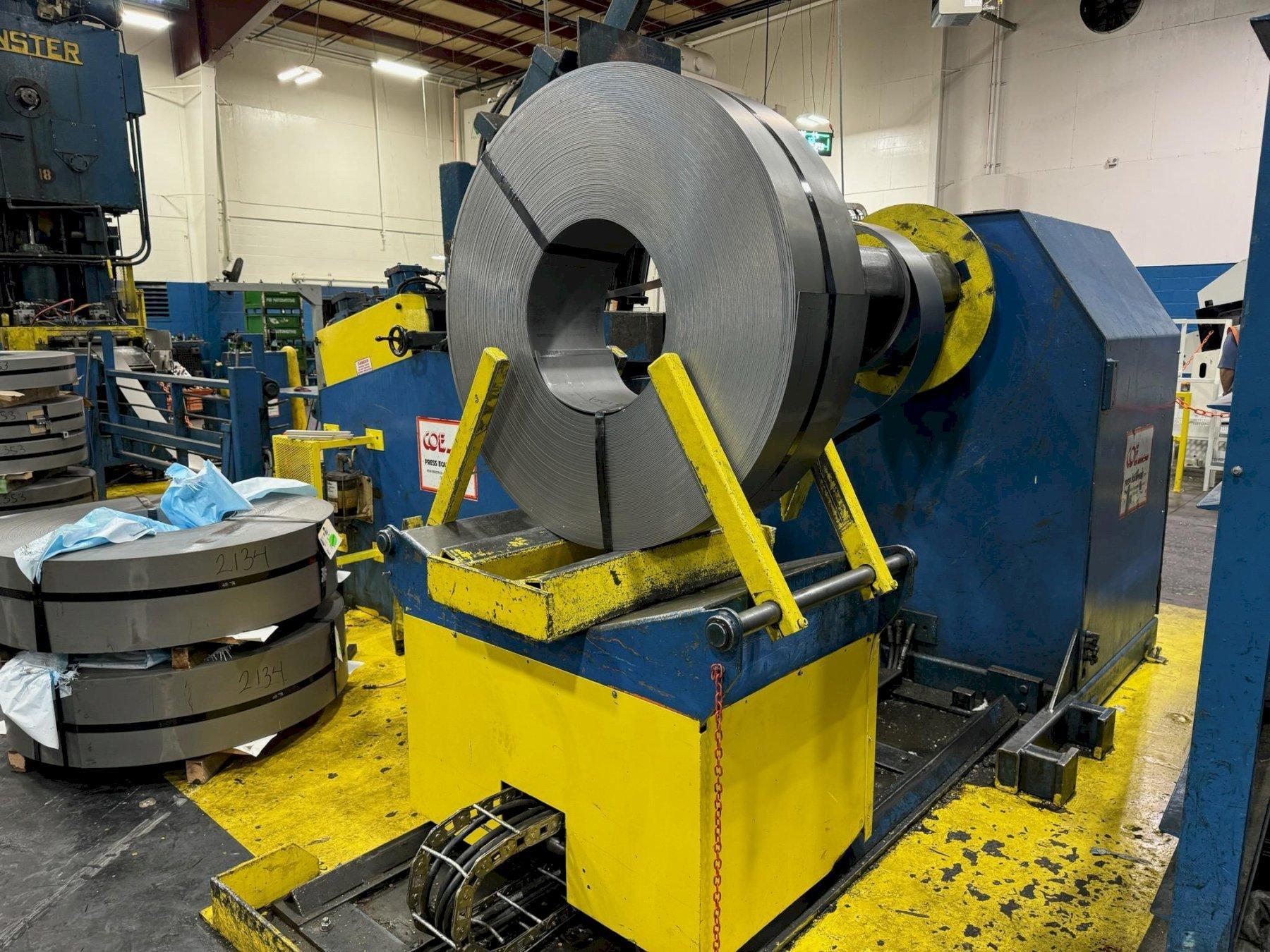

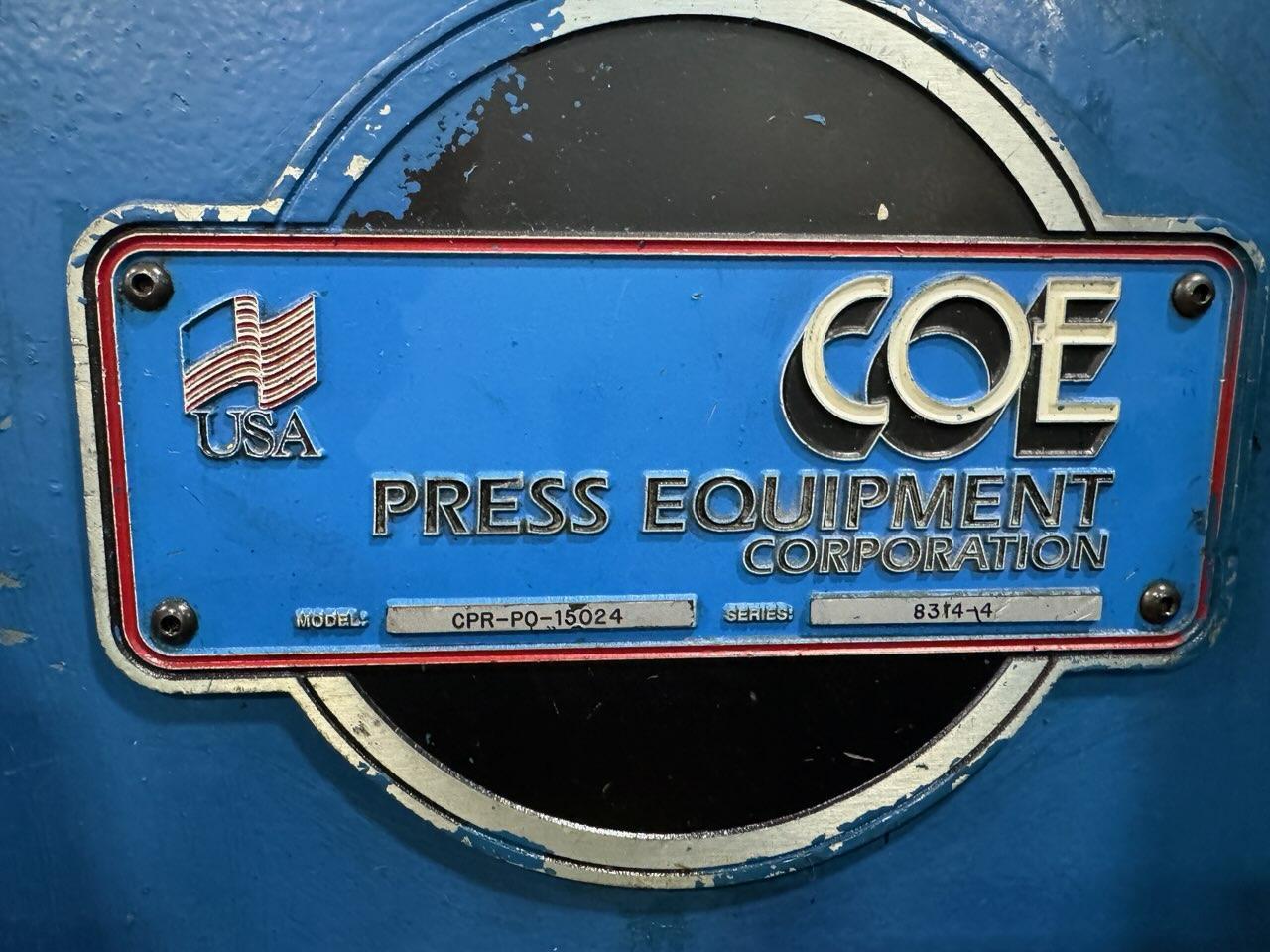

Coe Press Pull Off Coil Reel Uncoiler Model No.: CPR-PO-15024, Serial No.: 8314-4
Three leaf mandrel
Hydraulic wedge type madrel expansion
Adjustable coil keeper arms
Thread drive for jog forward and reverse
Air brake mounted on main spindle
Adjustable tensioning
Self contained hydraulic unit
Traveling coil load car
Powered lift and travel

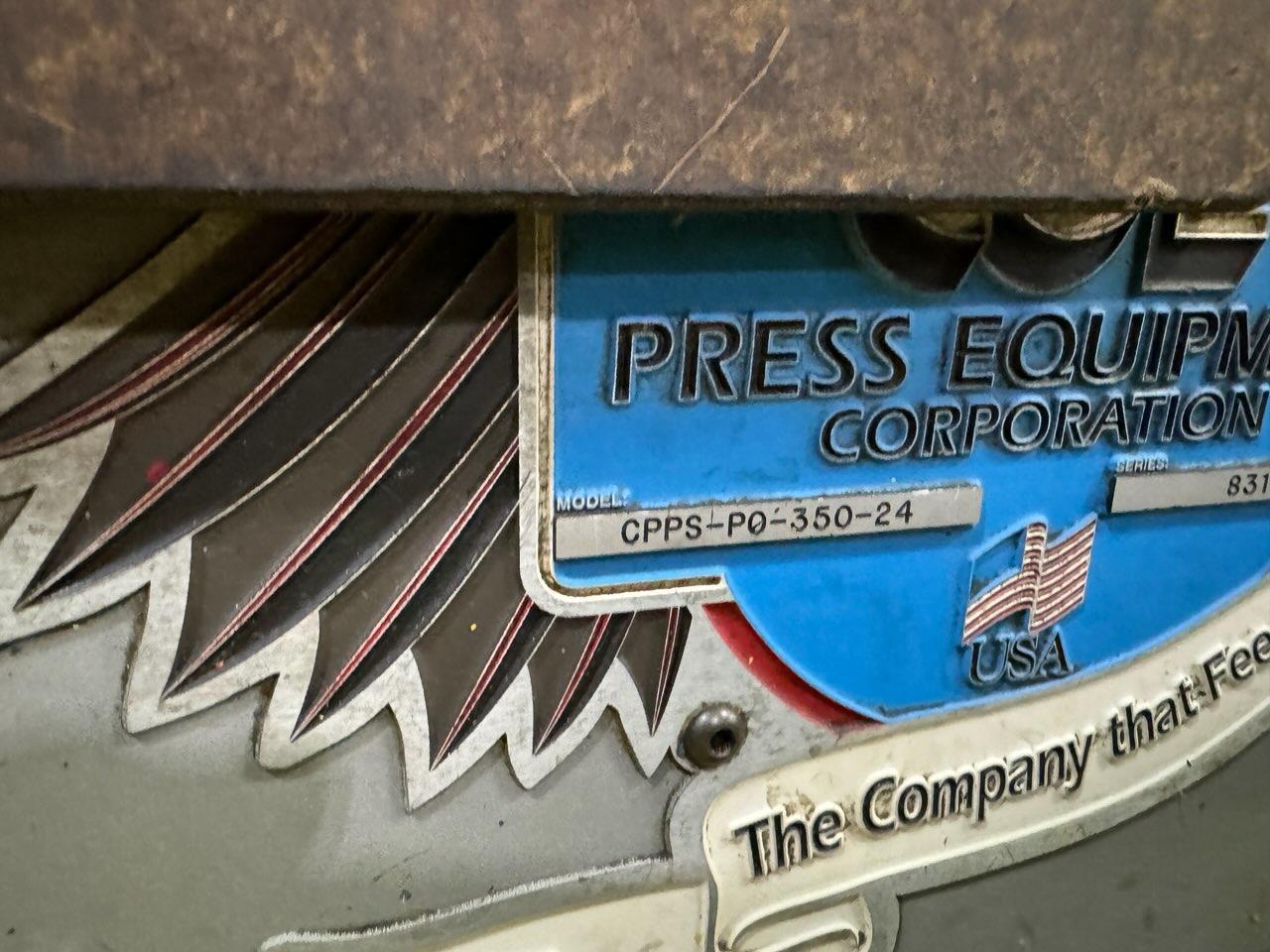

Coe Press Powered Straightener
Entry and exit pinch rolls with air operated upper pinch roll adjustments
Seven straightening rolls x 3.5 inch diameter
Individual upper straightening roll adjustments via screw jacks
Adjustable stock width edge guides
Inclined head with exit cascade loop support rollers
Stock peeler - threading - debending station (PTH)
Air operated coil hold down arm with motorized end wheel
Air operated peeler table with spade extension
Out board lubrication points
Outboard air pressure regulator and gauges
Common operator's station for control functions
Hand held pendant for Jog forward and reverse
Auto / Run cycle
Loop control

Coe Press Exit Thread Table
Bomb bay style design

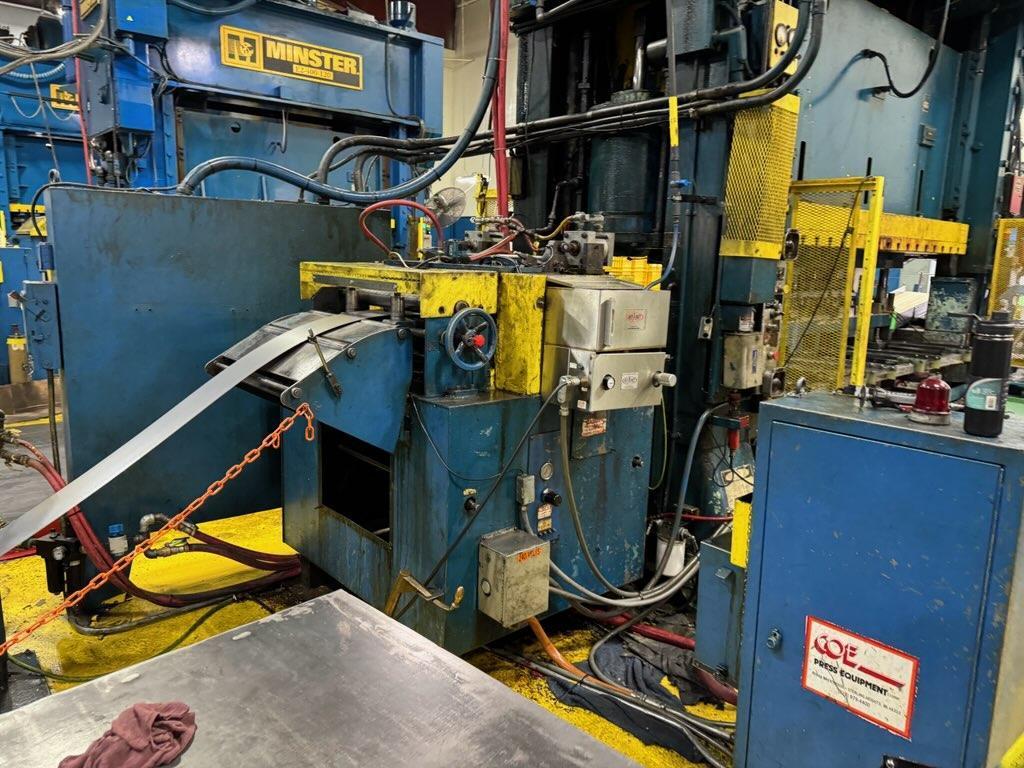

Coe Press Servo Roll Feed
Four inch diameter feed rolls
Matte chrome finish on upper and lower feed rolls
Precision cluster gear driven feed rolls
Pivoting upper feed roll assures gear mesh
Air operated upper roll adjustment / pilot
Heavy duty adjustable stock width edge guides
Cascade loop support rollers
Cabinet base mounted with heavy duty pass line adjustment
AC Servo drive and controls

Optional - consult sales
NEW AC servo drive and control system
Job memory micro adjust batch count etc
(Consult sales for complete details)
Free standing sloped front control console
Remote pendant control for jog forward and reverse
Fused disconnect
480 Volt Preset to customer specification
Auto Mode
