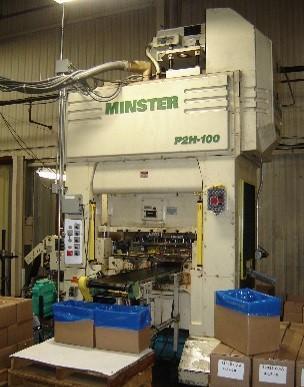

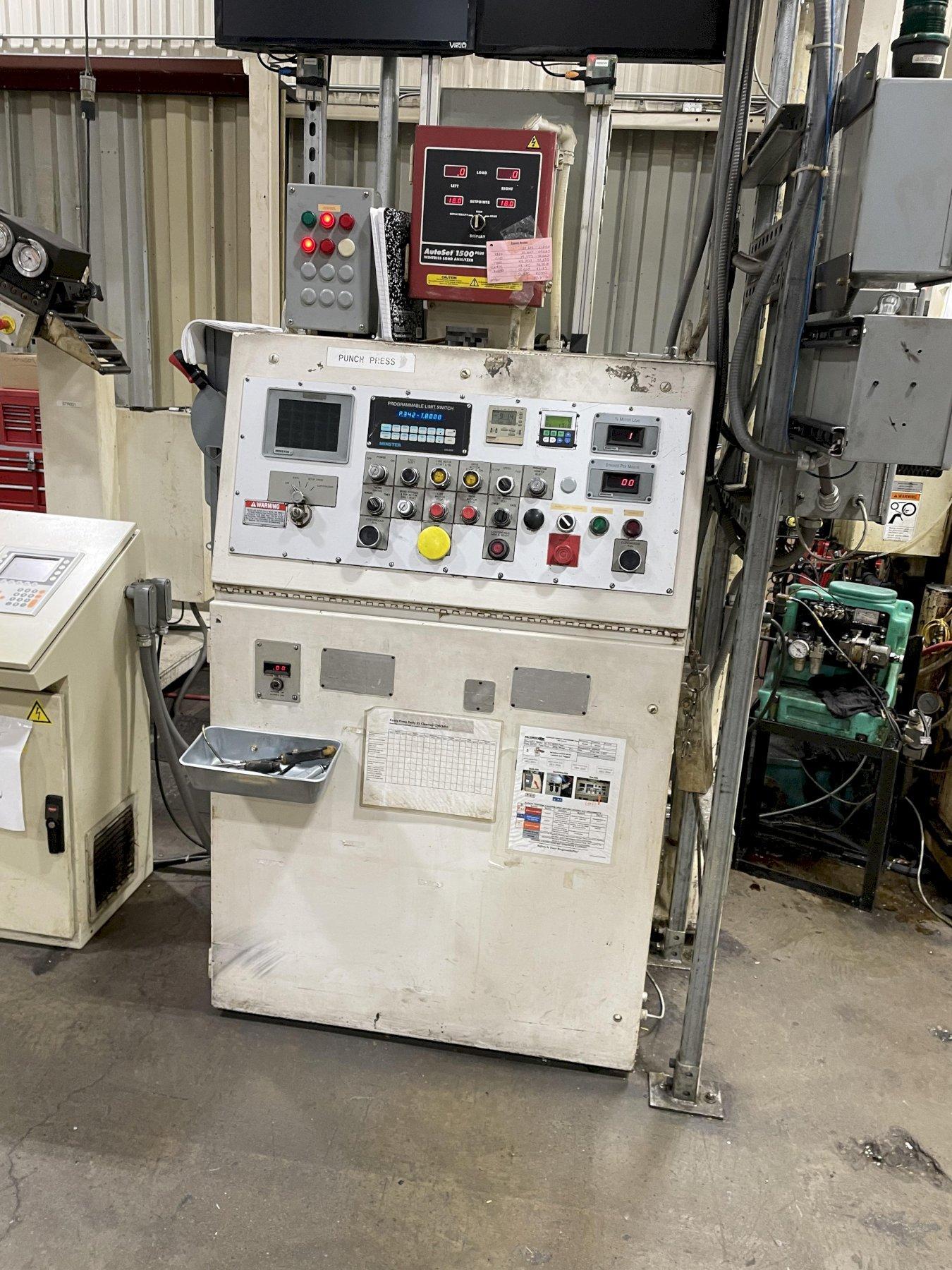

P2H Precision Straight Side Press

Specifications (INCH)

Press Specifications

Model Number........................................................   P2H-100-39×31-FW

Force × Distance off Bottom..................................   110 ton × 0.063 in

Crankshaft Extension Location...............................   Opposite Drive Side

Drive Arrangement..................................................   Flywheel

Drive Location........................................................   Right Hand Side

Lube Unit Location.................................................   Opposite Feed Side

Approximate Press Weight.....................................   39,600 lb

Shutheight Indicator Readout.................................   Inch

Shop Air Pressure, Minimum..................................   85 psi

Press Slide Specifications

Stroke Length, Speed Range...................................   1.57 in, 90 - 450 spm

Shutheight Adjustment...........................................   3.94 in

Quick Access Slide Range......................................   0.50 - 4.50 in

Area of Slide, R-L × F-B........................................   39.4 × 26.0 in

Slide Face Machining..............................................   Standard

Press Bolster Specifications

Bolster Plate Material..............................................   Cast Iron

Bolster Plate Thickness...........................................   5.94 in

Area of Bolster, R-L × F-B.....................................   39.4 × 31.5 in

Opening in Bolster, R-L × F-B..............................   31.5 x 7.5 in

Bolster Plate Machining..........................................   Standard

Press Frame Specifications

Upright Passline Opening, F-B...............................   22.0 in

Area of Bed, R-L × F-B..........................................   39.4 × 31.5 in

Opening in Bed, R-L × F-B....................................   32.0 × 14.2 in

Bed Deflection at 67% of Die Area........................   0.0013 in/ft

Shutheight, Maximum (SDAU)............................   12.4 in, on Bolster

Approx Clearance, Mount to Bottom of Bed.........   17.0 in

Approx. Distance Mount to Top of Bolster ............  46.7 in.

Approx. Distance Mount to Top of Bed.................   40.7 in

Approx. Floor Area, R-L × F-B..............................   104 × 70.0 in

Approx. Overall Area, R-L × F-B...........................   104 × 70.0 in

Approx. Overall Height, from Mount.....................   155 in
