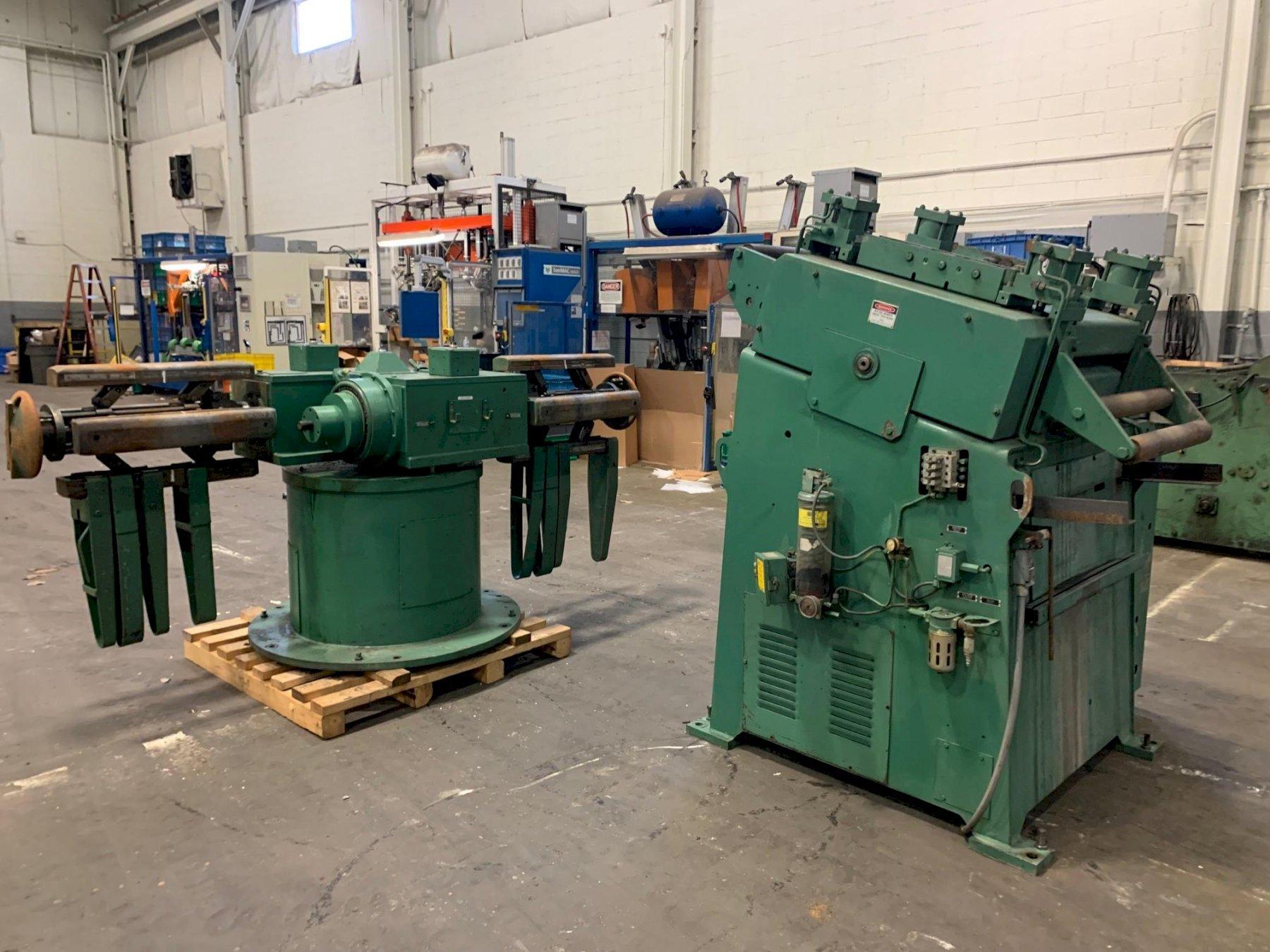

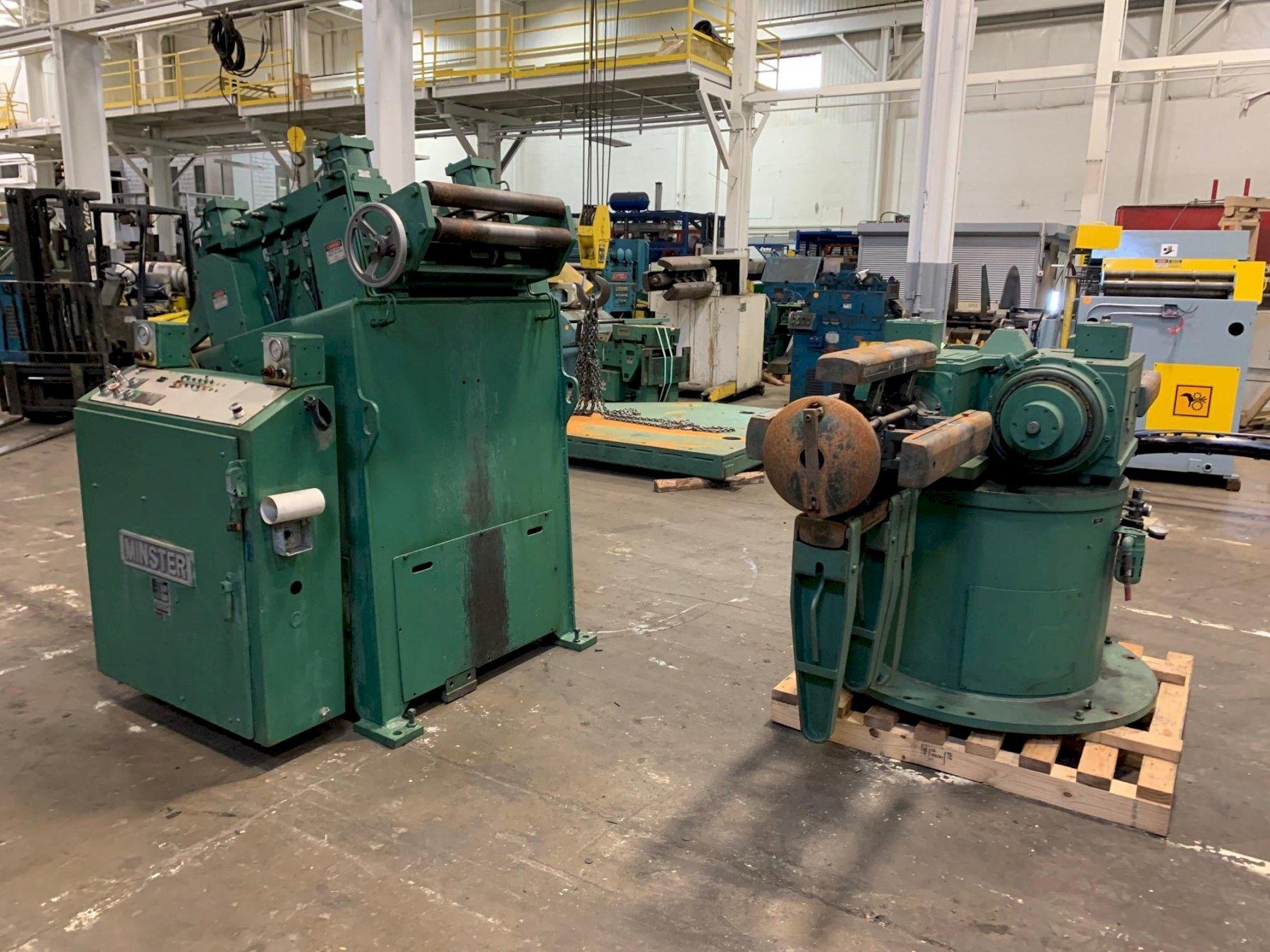

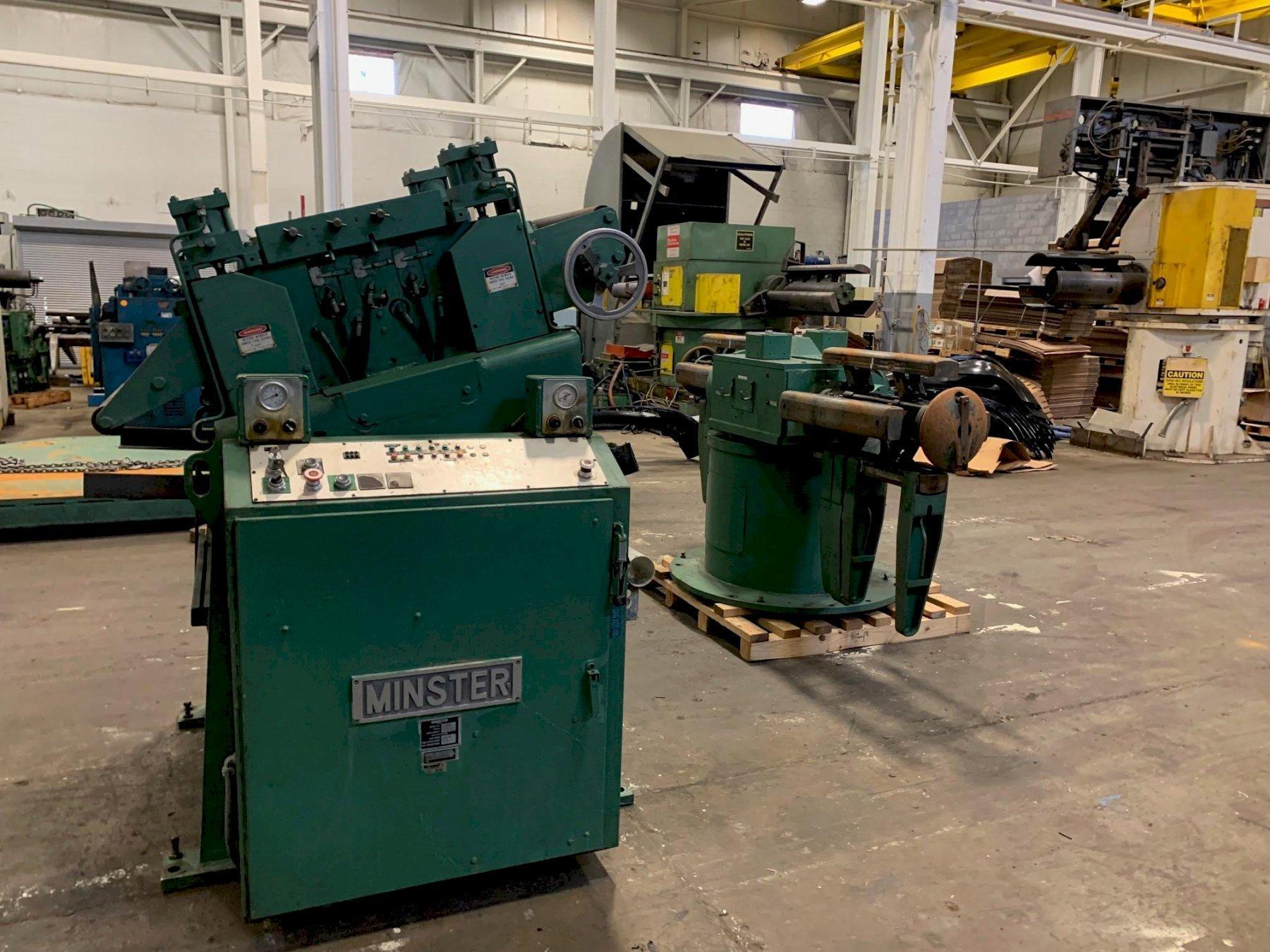

Minster Double End Coil Reel and Powered Straightener Combination Specifications:
Coil weight capacity: 6,000 Lbs.
Coil width capacity: 20"
Stock thickness capacity: .090" x 20" Wide
Expansion range: 16" - 20"
Coil O.D. capacity: 60"

Minster Double End Coil Reel and Powered Straightener Combination Equipment and Features:

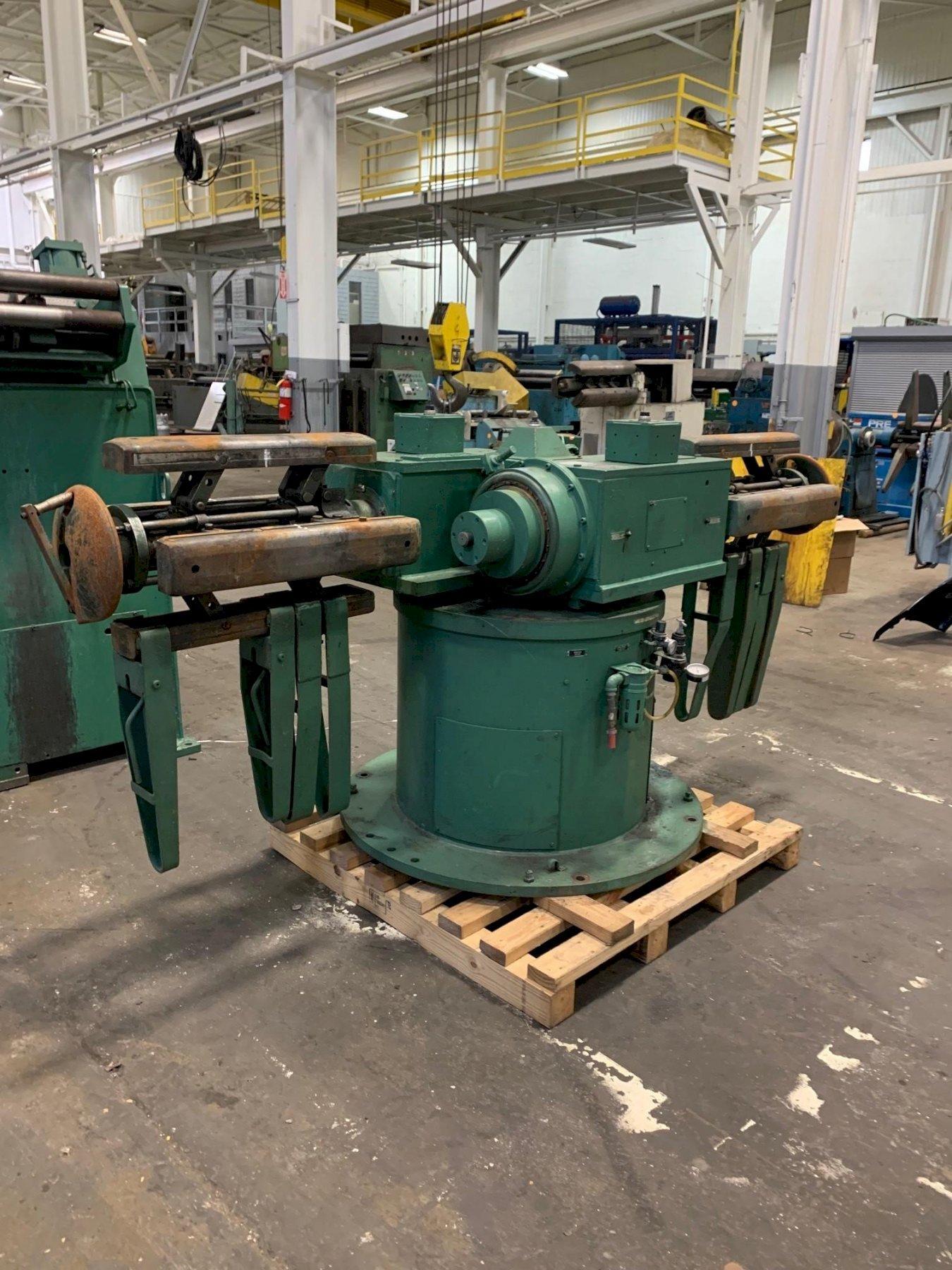

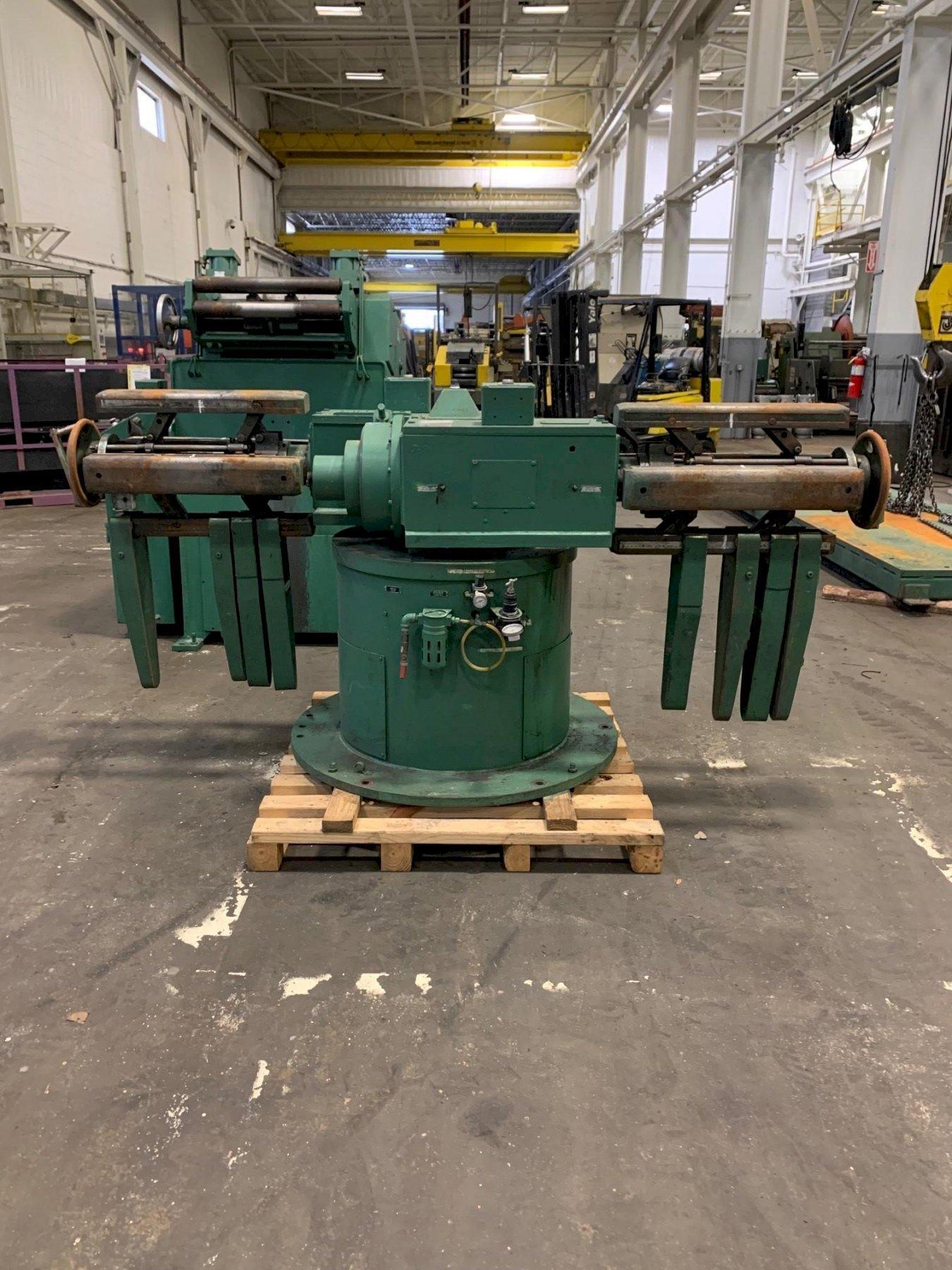

Minster Double End Coil Reel Uncoiler Model No.: MR6-26D
Three leaf mandrel coil reel
Adjustable coil keeper arms
Manual mandrel expansion
Flip out front mounted expansion handles
Air drag brake mounted on main coil reel spindle
Outboard air regulator for drag brake adjustment

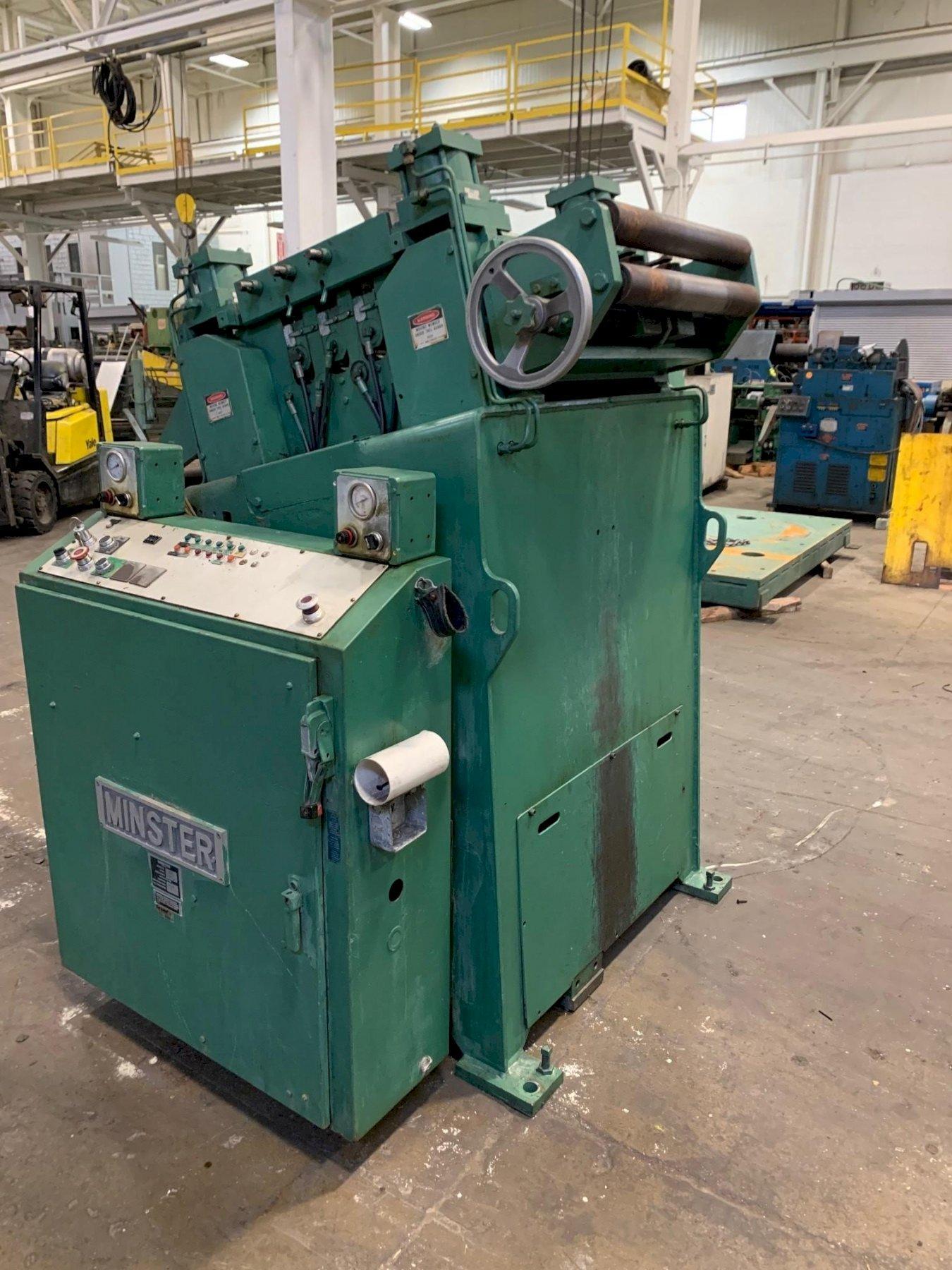

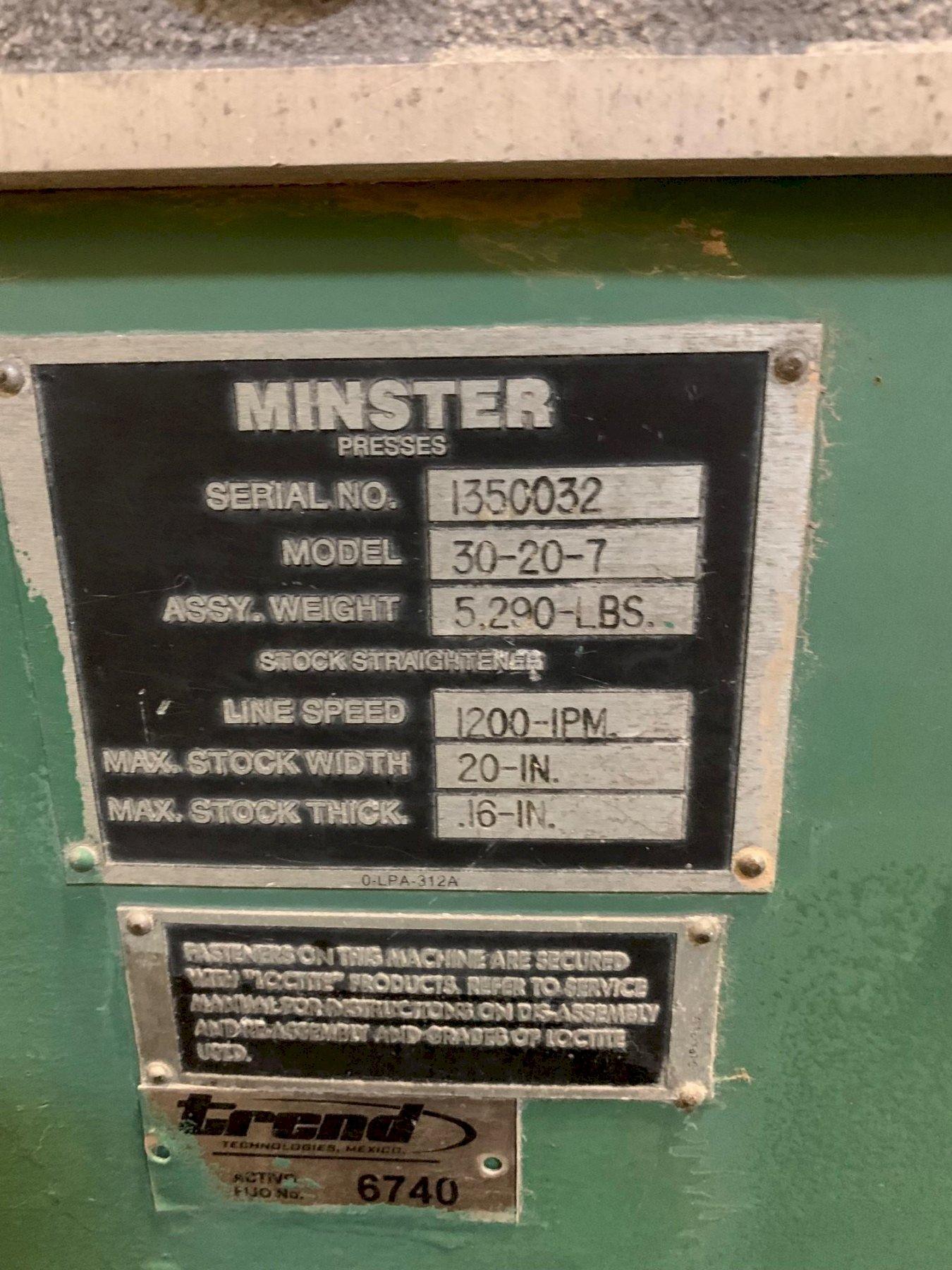

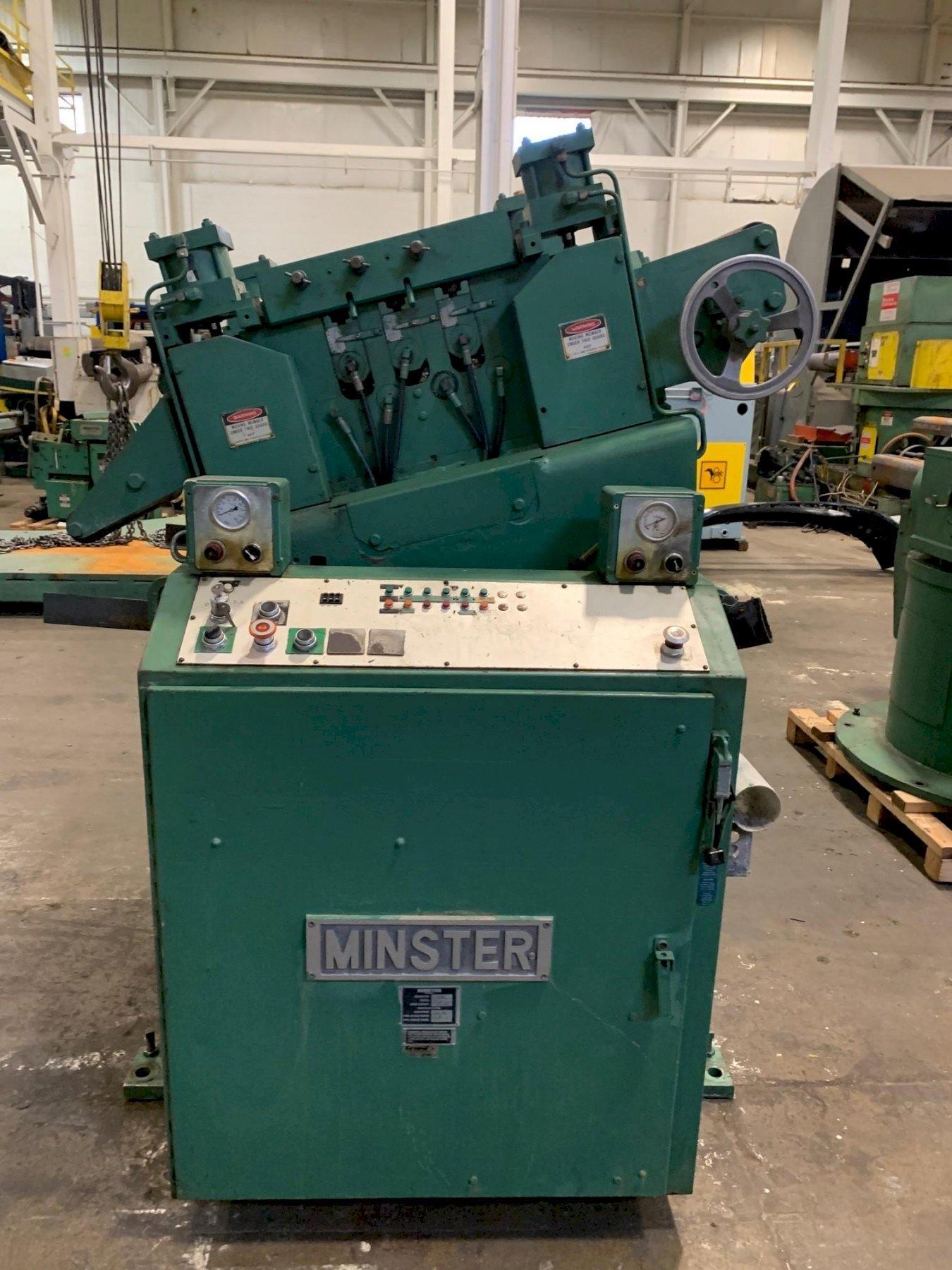

Minster Powered Coil Straightener Model No.: MS20-20-7
Entry and exit powered coil straightener pinch rolls with air operated adjustment
Outboard air regulator for upper powered coil straightener pinch roll air pressure adjustment
Seven coil straightening rolls x 2" diameter
Stock width edge guides via hand crank
Inclined powered coil straightening head
Automatic lubrication system
Two roll cascade loop support section
Variable speed powered coil straightener drive
Jog forward and reverse
Auto / Run cycle
Loop control
