SPECIFICATIONS

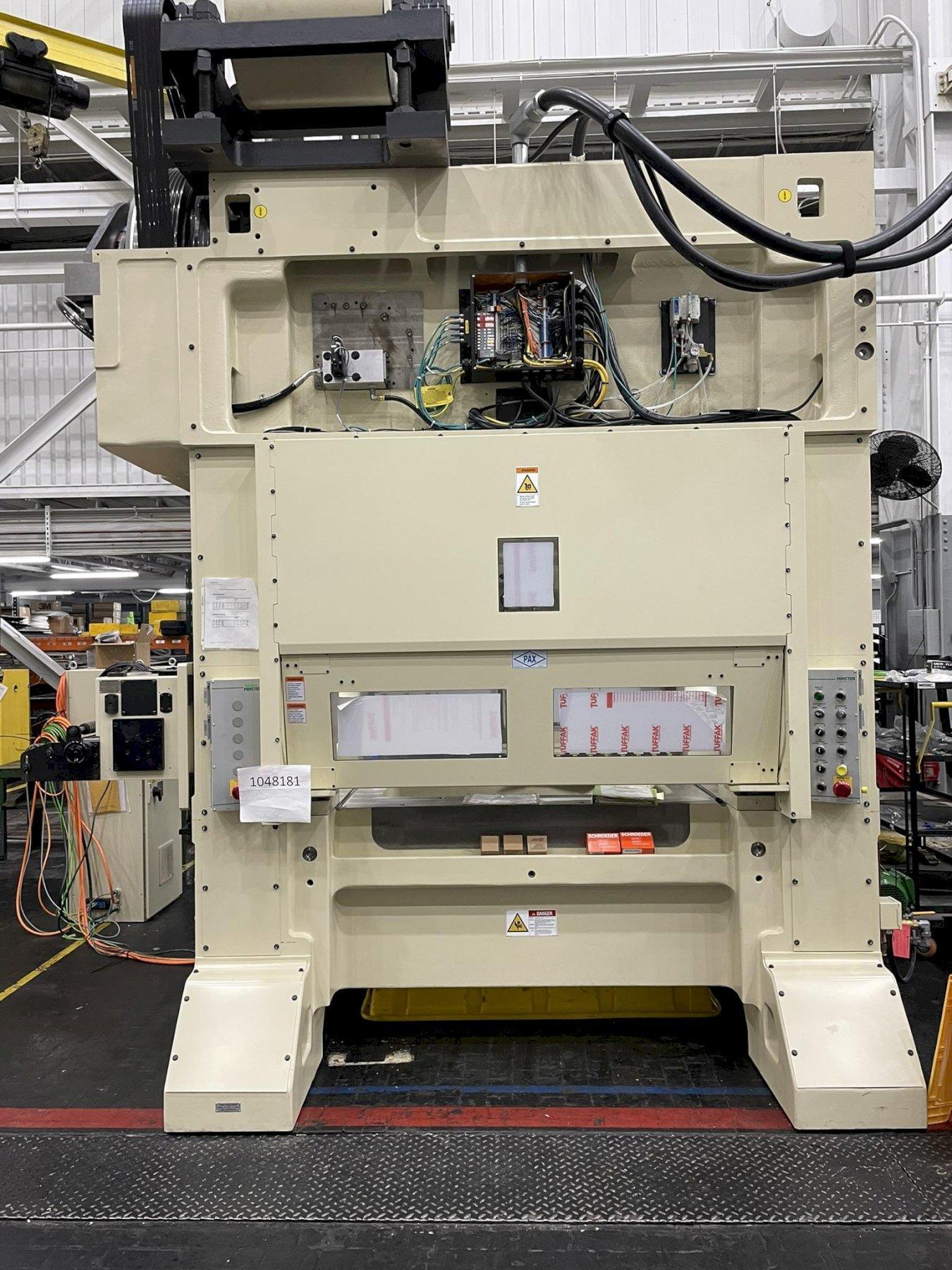

Press Specifications

Model Number........................................................   P2H-160-63×33-FW

Force × Distance off Bottom..................................   180 ton × 0.060 in

Crankshaft Extension Location...............................   Opposite Drive Side

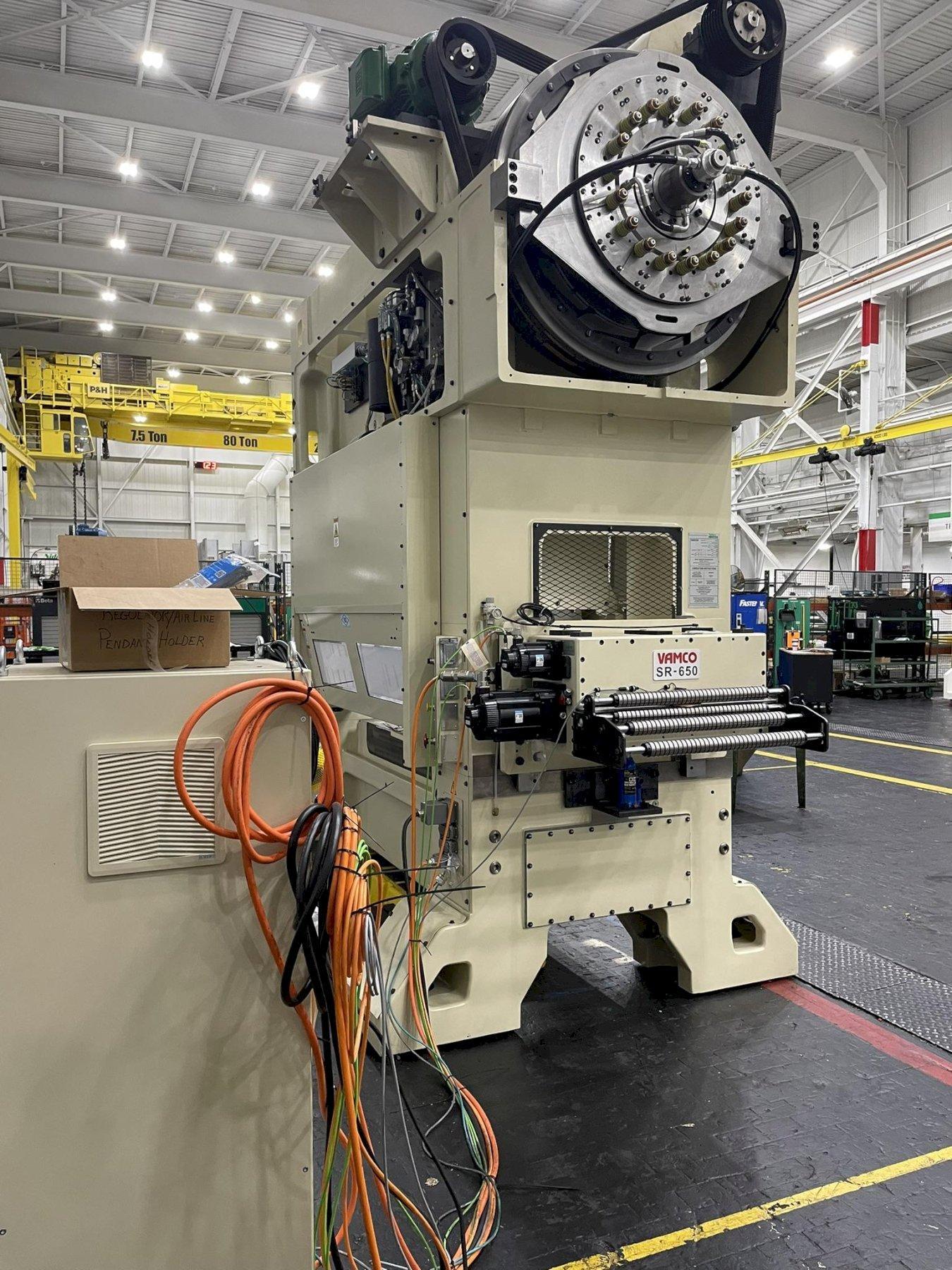

Drive Arrangement..................................................   Flywheel

Drive Location........................................................   Left Hand Side

Lube Unit Location.................................................   Opposite Feed Side

Approximate Press Weight.....................................   67,000 lb

Shutheight Indicator Readout.................................   Inch

Shop Air Pressure, Minimum..................................   85 psi

Press Slide Specifications

Stroke Length, Speed Range...................................   1.97 in, 70 - 350 spm

Shutheight Adjustment...........................................   3.94 in

Quick Access Slide Range......................................   0.50 - 4.50 in

Area of Slide, R-L × F-B........................................   63.0 × 33.5 in

Slide Face Machining...........................   Customer Specification

Press Bolster Specifications

Bolster Plate Material..............................................   Steel

Bolster Plate Thickness...........................................   4.92 in

Area of Bolster, R-L × F-B.....................................   63.0 × 33.5 in

Opening in Bolster, R-L × F-B...............................   36.0 × 12.0 in

 Bolster Plate Machining........................   Customer Specification

Press Frame Specifications

Upright Passline Opening, F-B...............................   24.8 in

Area of Bed, R-L × F-B..........................................   63.0 × 33.5 in

Opening in Bed, R-L × F-B....................................   51.2 × 14.6 in

Bed Deflection at 67% of Die Area........................   0.0012 in/ft

Shutheight, Maximum (SDAU)..............................   17.72 in, on Bolster

Approx Clearance, Mount to Bottom of Bed.........   11.8 in

Approx. Distance Mount to Top of Bolster............   46.4 in

Approx. Distance Mount to Top of Bed.................   41.5 in

Approx. Floor Area, R-L × F-B..............................   132 × 80.0 in

Approx. Overall Area, R-L × F-B...........................   132 × 80.0 in

Approx. Overall Height, from Mount.....................   160 in
