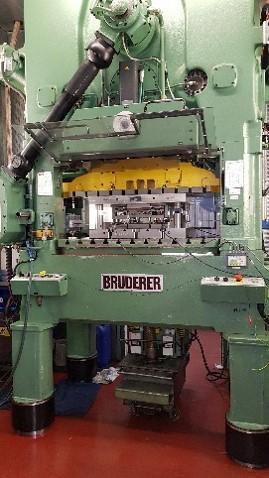

Rebuilt Bruderer High Speed Press BSTA 50L

Stock #: 11051

Used Bruderer High Speed Press BSTA 50L

Model: BSTA 50L

Serial #: N/A

Year: N/A

SPM 1120

Tonnage 50 metric-tons

Stroke 51 millimeters

Shut Height 294 millimeters

Vari Speed (Yes/No) yes

Bed W 650 millimeters

Bed L 940 millimeters

Crank (Single/Double) double

Request a quote

PRESS SPECIFICATIONS:

· Tonnage 500KN

· 950mm Tool Loading Area

· Strokes/minute 80-1120 (Depending on stroke length)

· Adjustable Stroke: 16,19,25,32,38,44,51

· 64mm Ram Adjustment Area

· 212.5-294mm Shut Height (Depending on stroke length)

· 940 x 650mm Bolster Plate Area

· 910 x 200mm Bolster Plate Opening

· 810 x 420mm Ram Area

· 250mm Strip Inlet Width

· 60-140mm Strip Inlet Height

· Feed Direction Left to Right

· 8,400 Kg Approx. Weight
